Supporto per fresa frontale ANSI B5.50 pollici
Il portautensili per fresatura a faccia di gatto è un tipo di portautensili utilizzato appositamente per frese a faccia.
1. Buona rigidità.
2. Alta efficienza di taglio.
3. Funzionamento conveniente.

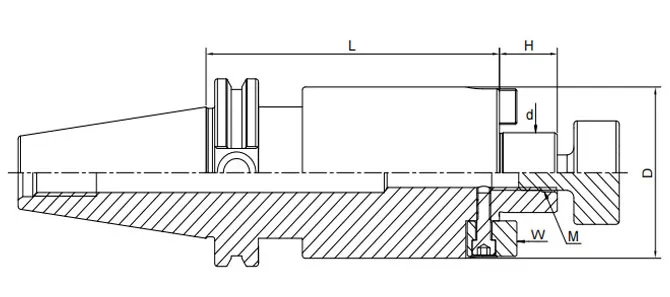

Dimensioni | D | D | L | H | M |
CAT40-FMA1/2 "-1.75" | 1/2" | 36.576 | 1.75" | 13.97 | 1/4-28 |
CAT40-FMA3/4 "-1.75" | 3/4" | 42.926 | 1.75" | 17.45 | 3/8-24 |
CAT40-FMA1 "-2" | 1" | 55.626 | 2" | 17.45 | 1/2-20 |
CAT40-FMA1-1/4 "-2" | 1-1/4" | 69.85 | 2" | 17.45 | 5/8-18 |
CAT40-FMA1-1/2 "-2" | 1-1/2" | 78 | 2" | 23.83 | 3/4-16 |
CAT40-FMA1/2 "-4" | 1/2" | 36.576 | 4" | 13.97 | 1/4-28 |
CAT40-FMA3/4 "-4" | 3/4" | 42.926 | 4" | 17.45 | 3/8-24 |
CAT40-FMA1 "-4" | 1" | 55.626 | 4" | 17.45 | 1/2-20 |
CAT40-FMA1-1/4 "-4" | 1-1/4" | 69.85 | 4" | 17.45 | 5/8-18 |
CAT40-FMA1-1/2 "-4" | 78 | 4" | 23.83 | 3/4-16 | |
CAT40-FMA3/4 "-6" | 3/4" | 42.926 | 6" | 17.45 | 3/8-24 |
CAT40-FMA1 "-6" | 1" | 55.626 | 6" | 17.45 | 1/2-20 |
CAT40-FMA3/4 "-8" | 3/4" | 42.926 | 8" | 17.45 | 3/8-24 |
CAT40-FMA1 "-8" | 1" | 55.626 | 8" | 17.45 | 1/2-20 |
CAT50-FMA1/2 "-1.38" | 1/2" | 36.576 | 1.38" | 13.97 | 1/4-28 |
CAT50-FMA3/4 "-2" | 3/4" | 42.926 | 2" | 17.45 | 3/8-24 |
CAT50-FMA1 "-2" | 1" | 55.626 | 2" | 17.45 | 1/2-20 |
CAT50-FMA1-1/4 "-2" | 1-1/4" | 69.85 | 2" | 17.45 | 5/8-18 |
CAT50-FMA1-1/2 "-2" | 1-1/2" | 78 | 2" | 23.83 | 3/4-16 |
CAT50-FMA2 "-2" | 2" | 98 | 23.83 | 1-14 | |
CAT50-FMA3/4 "-4" | 3/4" | 42.926 | 4" | 17.45 | 3/8-24 |
CAT50-FMA1 "-4" | 1" | 55.626 | 4" | 17.45 | 1/2-20 |
CAT50-FMA1-1/4 "-4" | 1-1/4" | 69.85 | 4" | 17.45 | 5/8-18 |
CAT50-FMA1-1/2 "-4" | 1-1/2" | 78 | 4" | 23.83 | 3/4-16 |
CAT50-FMA2 "-4" | 2" | 98 | 4" | 23.83 | 1-14 |
CAT50-FMA3/4 "-6" | 3/4" | 42.926 | 6" | 17.45 | 3/8-24 |
CAT50-FMA1 "-6" | 1" | 55.626 | 6" | 17.45 | 1/2-20 |
CAT50-FMA1-1/4 "-6" | 1-1/4" | 69.85 | 6" | 17.45 | 5/8-18 |
CAT50-FMA1-1/2 "-6" | 1-1/2" | 78 | 6" | 23.83 | 3/4-16 |
CAT50-FMA3/4 "-8" | 3/4" | 8" | 17.45 | 3/8-24 | |
CAT50-FMA1 "-8" | 1" | 55.626 | 8" | 17.45 | 1/2-20 |
CAT50-FMA1-1/4 "-8" | 1-1/4" | 69.85 | 8" | 17.45 | 5/8-18 |
CAT50-FMA1-1/2 "-8" | 1-1/2" | 78 | 8" | 23.83 | 3/4-16 |
